Product Miscellaneous Fittings
Category Plug
Name [ASTM UNS C70600] Threaded Type Hex-Plug
Materials ASTM UNS C70600

제품설명

  • Unit : mm

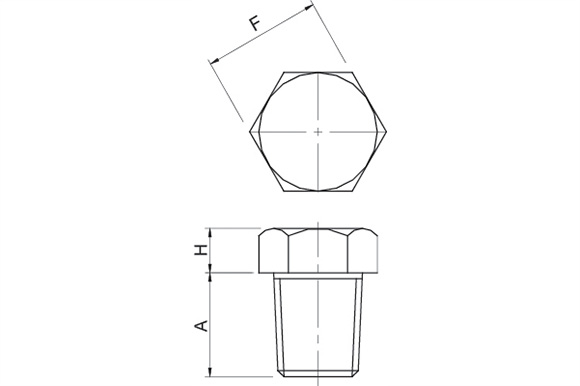

N/D Dimension Remark
A (Min.) F H
1/2" 14.0 22.0 8.0
3/4" 16.0 27.0 10.0
1" 19.0 36.0 10.0
1 1/4" 21.0 46.0 14.0
1 1/2" 21.0 50.0 16.0
2" 22.0 65.0 18.0
*NOTE : 1. Dimension Per ASME B16.5
2. Process : Extrude Bar
