| Product | Miscellaneous Fittings |
|---|---|
| Category | Coupling |
| Name | [EEMUA 146 7060X] Threaded Type Coupling |
| Materials | EEMUA 146 7060X |
제품설명
- Unit : mm

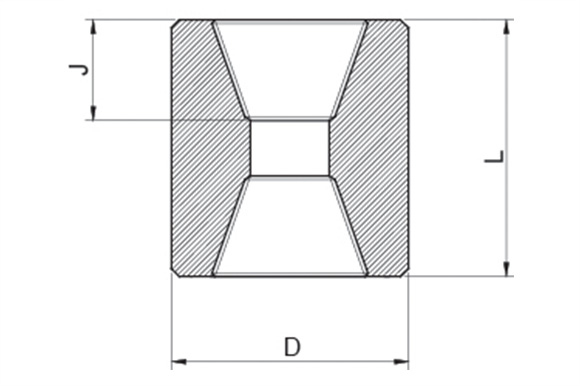

| N/D | Dimension | Remark | ||
|---|---|---|---|---|
| D | L | J (Min.) | ||
| 1/2" | 29.0 | 48 | 13.5 | |
| 3/4" | 35.0 | 51 | 14.0 | |
| 1" | 44.0 | 60 | 17.5 | |
| 1 1/4" | 57.0 | 67 | 18.0 | |
| 1 1/2" | 46.0 | 79 | 18.5 | |
| 2" | 76.0 | 86 | 19.0 | |
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Extrude Bar
2. Process : Extrude Bar
