| Product | Socket Welding Fittings |
|---|---|
| Category | Coupling |
| Name | [EEMUA 146 7060X] Socket Welding Type Coupling For Cu-Ni Pipe |
| Materials | EEMUA 146 7060X |
제품설명
- Unit : mm

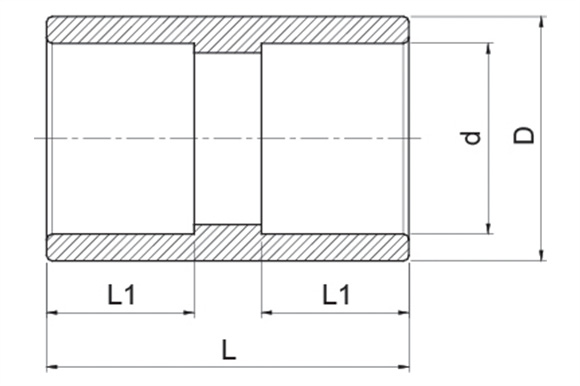

| Pipe | Dimension | Remark | ||||
|---|---|---|---|---|---|---|
| N/D | O/D | D | d | L | L1 (Min.) |
|
| 1/2" | 16 | 23 | 16.1 | 22 | 10 | |
| 3/4" | 25 | 32 | 25.1 | 28 | 13 | |
| 1" | 30 | 37 | 30.1 | 28 | 13 | |
| 1 1/2" | 44.5 | 52 | 44.6 | 28 | 13 | |
| 2" | 57 | 64 | 57.2 | 34 | 16 | |
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Machining For Pipe
