| Product | Socket Welding Fittings |
|---|---|
| Category | Coupling |
| Name | [EEMUA 146 7060X] Socket Welding Type Red Coupling For Cu-0Ni Pipe |
| Materials | EEMUA 146 7060X |
제품설명
- Unit : mm

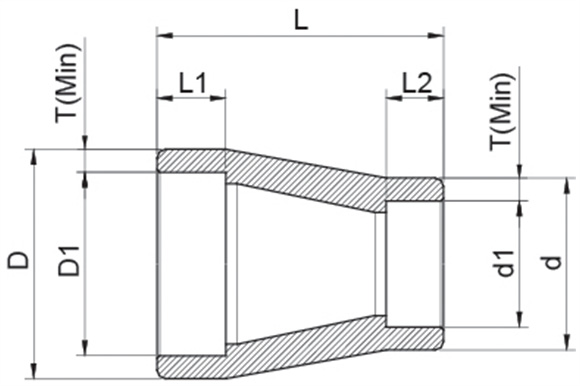

| Pipe | Dimension | Remark | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| N/D | O/D | D | D1 | d | d1 | L | L1 | L2 | T | |
| 3/4"X1/2" | 25X16 | 32 | 25.1 | 23 | 16.1 | 36 | 13 | 10 | 3.2 | |
| 3/4"X1/2" | 30X16 | 37 | 30.1 | 23 | 16.1 | 37 | 13 | 10 | 3.2 | |
| 1"X3/4" | 30X25 | 37 | 30.1 | 32 | 25.1 | 33 | 13 | 13 | 3.2 | |
| 1 1/2"X1/2" | 44.5X16 | 52 | 44.6 | 23 | 16.1 | 49 | 13 | 10 | 3.3 | |
| 1 1/2"x3/4" | 44.5X25 | 52 | 44.6 | 32 | 25.1 | 43 | 13 | 13 | 3.2 | |
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Extrude Bar
2. Process : Extrude Bar
