[EEMUA 146 7060X] Butt Welding Type Reducing Tee For Cu-Ni Pipe

페이지 정보

profile_image
작성자 Samyang
댓글 0건 조회 776회 작성일 20-08-17 19:34

본문

Product Butt Welding Fittings
Category RED. Tee
Name [EEMUA 146 7060X] Butt Welding Type Reducing Tee For Cu-Ni Pipe
Materials EEMUA 146 7060X

제품설명

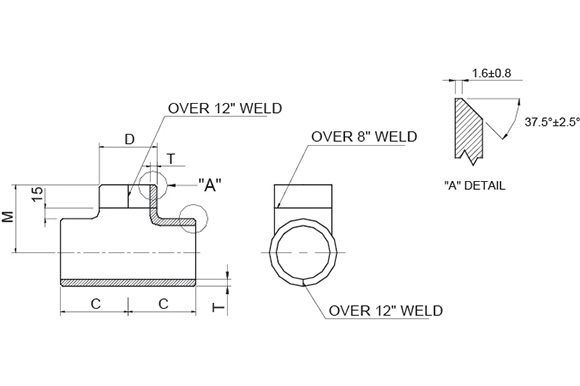

  • Unit : mm
Pipe Dimension Remark
N/D D d T t C M
16Bar 20Bar 16Bar 20Bar
16"X10" 419.0 267.0 7.0 9.0 4.5 5.5 305 283 WELDED
16"X12" 419.0 323.9 7.0 9.0 5.5 7.0 305 295 WELDED
16"X14" 419.0 368.0 7.0 9.0 6.5 8.0 305 305 WELDED
18"X12" 457.2 273.0 4.78 9.52 4.19 9.27 343 308 WELDED
18"X14" 457.2 323.8 4.78 9.52 4.57 9.52 343 321 WELDED
18"X16" 457.2 355.6 4.78 9.52 4.78 9.52 343 330 WELDED
20"X14" 508.0 368.0 8.5 11.0 6.5 8.0 381 356 WELDED
20"X16" 508.0 419.0 8.5 11.0 7.0 9.0 381 356 WELDED
20"X18" 508.0 457.2 8.5 11.0 8.0 9.5 381 368 WELDED
24"X16" 610.0 419.0 105 13.0 8.0 9.5 432 406 WELDED
24"X18" 610.0 457.2 10.5 13.0 8.0 9.5 432 419 WELDED
24"X20" 610.0 508.0 10.5 13.0 8.5 11.0 432 432 WELDED
28"X18" 711.0 457.2 12.0 15.0 8.0 9.5 521 470 WELDED
28"X20" 711.0 508.0 12.0 15.0 8.5 11.0 521 483 WELDED
28"X24" 711.0 610.0 12.0 15.0 10.5 13.0 521 508 WELDED
*NOTE : 1. Dimension Per EEMUA 146
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
