| Product | Butt Welding Fittings |
|---|---|
| Category | RED. Tee |
| Name | [2.1972.22] Butt Welding Type Reducing Tee For Cu-Ni Pipe |
| Materials | 2.1972.22 |
제품설명
- Unit : mm

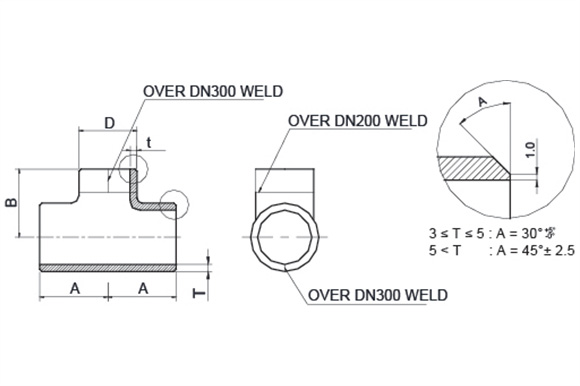

| Pipe | Dimension | Remark | |||||||
|---|---|---|---|---|---|---|---|---|---|
| N/D | D | d | T | t | L | L1 | |||
| 10Bar | 14Bar | 10Bar | 14Bar | ||||||
| DN150XDN125 | 159.0 | 133.0 | 2.5 | 3.0 | 2.5 | 3.0 | 143 | 136 | SEAMLESS |
| DN150XDN100 | 159.0 | 108.0 | 2.5 | 3.0 | 2.5 | - | 143 | 130 | SEAMLESS |
| DN150XDN80 | 159.0 | 89.0 | 2.5 | 3.0 | 2.0 | 2.5 | 143 | 121 | SEAMLESS |
| DN200XDN150 | 219.0 | 159.0 | 3.0 | 3.5 | 2.5 | 3.0 | 178 | 168 | SEAMLESS |
| DN200XDN125 | 219.0 | 133.0 | 3.0 | 3.5 | 2.5 | 3.0 | 178 | 162 | SEAMLESS |
| DN200XDN100 | 219.0 | 108.0 | 3.0 | 3.5 | 2.5 | - | 178 | 156 | SEAMLESS |
| DN250XDN200 | 267.0 | 219.0 | 3.0 | 4.0 | 3.0 | 3.5 | 216 | 203 | WELDED |
| DN250XDN150 | 267.0 | 159.0 | 3.0 | 4.0 | 2.5 | 3.0 | 216 | 194 | WELDED |
| DN250XDN125 | 267.0 | 133.0 | 3.0 | 4.0 | 2.5 | 3.0 | 216 | 189 | WELDED |
| DN300XDN250 | 324.0 | 267.0 | 4.0 | 5.0 | 3.0 | 4.0 | 254 | 241 | WELDED |
| DN300XDN200 | 324.0 | 219.0 | 4.0 | 5.0 | 3.0 | 3.5 | 254 | 229 | WELDED |
| DN300XDN150 | 324.0 | 159.0 | 4.0 | 5.0 | 2.5 | 3.0 | 254 | 219 | WELDED |
| DN350XDN300 | 368.0 | 324.0 | 4.0 | 5.5 | 4.0 | 5.0 | 279 | 270 | WELDED |
| DN350XDN250 | 368.0 | 267.0 | 4.0 | 5.5 | 3.0 | 4.0 | 279 | 257 | WELDED |
| DN350XDN200 | 368.0 | 219.0 | 4.0 | 5.5 | 3.0 | 3.5 | 279 | 248 | WELDED |
| DN400XDN350 | 419.0 | 368.0 | 4.0 | 6.0 | 4.0 | 5.5 | 305 | 305 | WELDED |
| DN400XDN300 | 419.0 | 324.0 | 4.0 | 6.0 | 4.0 | 5.0 | 305 | 295 | WELDED |
| DN400XDN250 | 419.0 | 267.0 | 4.0 | 6.0 | 3.0 | 4.0 | 305 | 283 | WELDED |
| DN400XDN200 | 419.0 | 219.0 | 4.0 | 6.0 | 3.0 | 3.5 | 305 | 276 | WELDED |
- Unit : mm
| Pipe | Dimension | Remark | |||||||
|---|---|---|---|---|---|---|---|---|---|
| N/D | D | d | T | t | A | B | |||
| 10Bar | 14Bar | 10Bar | 14Bar | ||||||
| DN450XDN400 | 457.0 | 419.0 | 4.0 | 6.0 | 4.0 | 6.0 | 343 | 330 | WELDED |
| DN450XDN350 | 457.0 | 368.0 | 4.0 | 6.0 | 4.0 | 5.5 | 343 | 330 | WELDED |
| DN450XDN300 | 457.0 | 324.0 | 4.0 | 6.0 | 4.0 | 5.0 | 343 | 321 | WELDED |
| DN450XDN250 | 457.0 | 267.0 | 4.0 | 6.0 | 3.0 | 4.0 | 343 | 310 | WELDED |
| DN500XDN450 | 508.0 | 457.0 | 4.5 | 6.5 | 4.0 | 6.0 | 381 | 368 | WELDED |
| DN500XDN400 | 508.0 | 419.0 | 4.5 | 6.5 | 4.0 | 6.0 | 381 | 356 | WELDED |
| DN500XDN350 | 508.0 | 368.0 | 4.5 | 6.5 | 4.0 | 5.5 | 381 | 356 | WELDED |
| DN500XDN300 | 508.0 | 324.0 | 4.5 | 6.5 | 4.0 | 5.0 | 381 | 347 | WELDED |
| DN600XDN500 | 610.0 | 508.0 | 5.0 | 8.0 | 4.5 | 6.5 | 432 | 432 | WELDED |
| DN600XDN450 | 610.0 | 457.0 | 5.0 | 8.0 | 4.0 | 6.0 | 432 | 419 | WELDED |
| DN600XDN400 | 610.0 | 419.0 | 5.0 | 8.0 | 4.0 | 6.0 | 432 | 406 | WELDED |
| DN600XDN350 | 610.0 | 368.0 | 5.0 | 8.0 | 4.0 | 5.5 | 432 | 393 | WELDED |
*NOTE :
1. Dimension Per DIN 86088
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
