| Product | Butt Welding Fittings |
|---|---|
| Category | Cap |
| Name | [ASTM UNS C70600] Butt Welding Type Cap For Cu-Ni Pipe |
| Materials | ASTM UNS C70600 |
제품설명
- Unit : mm

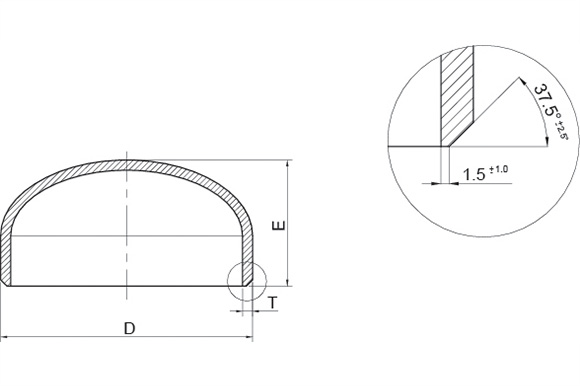

| Pipe | Dimension | Remark | ||||
|---|---|---|---|---|---|---|
| N/D | O/D | D | H | T | ||
| S/10S | S/40S | |||||
| 2" | 60.3 | 60.3 | 38.0 | 2.77 | 3.91 | |
| 3" | 88.9 | 88.9 | 51.0 | 3.05 | 5.49 | |
| 4" | 114.3 | 114.3 | 64.0 | 3.05 | 6.02 | |
| 6" | 168.3 | 168.3 | 89.0 | 3.40 | 7.11 | |
| 8" | 219.1 | 219.1 | 102.0 | 3.76 | 8.18 | |
| 10" | 273.0 | 273.0 | 127.0 | 4.19 | 9.27 | |
| 12" | 323.8 | 323.8 | 152.0 | 4.57 | 9.52 | |
| 14" | 355.6 | 355.6 | 165.0 | 4.78 | 9.52 | |
| 16" | 406.4 | 406.4 | 178.0 | 4.78 | 9.52 | |
| 18" | 457.0 | 457.0 | 203.0 | 6.35 | 9.52 | |
| 20" | 508.0 | 508.0 | 229.0 | 6.35 | 9.52 | |
| 24" | 610.0 | 610.0 | 267.0 | 6.35 | 9.52 | |
| 28" | 711.0 | 711.0 | 267.0 | 7.92 | 9.52 | |
*NOTE :
1. Dimension Per ASME B16.9
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
