| Product | Butt Welding Fittings |
|---|---|
| Category | ECC. Reducer |
| Name | [EEMUA 146 7060X] Butt Welding Type ECC. Reducer For Cu-Ni Pipe |
| Materials | EEMUA 146 7060X |
제품설명
- Unit : mm

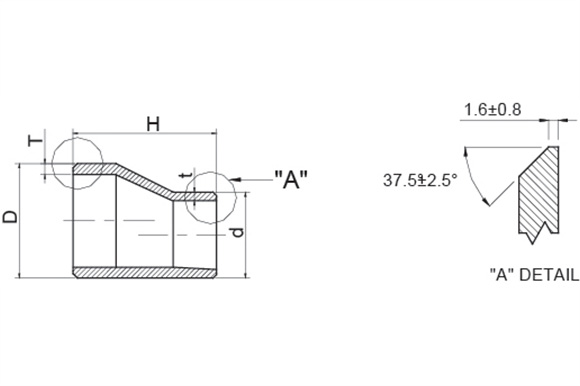

| Pipe | Dimension | Remark | ||||||
|---|---|---|---|---|---|---|---|---|
| N/D | D | d | T | t | H | |||
| 16Bar | 20Bar | 16Bar | 20Bar | |||||
| 1 1/2"X3/4" | 44.5 | 25.0 | 2.5 | 2.5 | 2.5 | 2.5 | 64 | SEAMLESS |
| 1 1/2"X1" | 44.5 | 30.0 | 2.5 | 2.5 | 2.5 | 2.5 | 64 | SEAMLESS |
| 1 1/2"X1 1/4" | 44.5 | 38.0 | 2.5 | 2.5 | 2.5 | 2.5 | 64 | SEAMLESS |
| 2"X1" | 57.0 | 30.0 | 2.5 | 2.5 | 2.5 | 2.5 | 76 | SEAMLESS |
| 2"X1 1/4" | 57.0 | 38.0 | 2.5 | 2.5 | 2.5 | 2.5 | 76 | SEAMLESS |
| 2"X1 1/2" | 57.0 | 44.5 | 2.5 | 2.5 | 2.5 | 2.5 | 76 | SEAMLESS |
| 2 1/2"X1 1/4" | 76.1 | 38.0 | 2.5 | 2.5 | 2.5 | 2.5 | 89 | SEAMLESS |
| 2 1/2"X1 1/2" | 76.1 | 44.5 | 2.5 | 2.5 | 2.5 | 2.5 | 89 | SEAMLESS |
| 2 1/2"X2" | 76.1 | 57.0 | 2.5 | 2.5 | 2.5 | 2.5 | 89 | SEAMLESS |
| 3"X1 1/2" | 88.9 | 44.5 | 2.5 | 2.5 | 2.5 | 2.5 | 89 | SEAMLESS |
| 3"X2" | 88.9 | 57.0 | 2.5 | 2.5 | 2.5 | 2.5 | 89 | SEAMLESS |
| 3"X2 1/2" | 88.9 | 76.1 | 2.5 | 2.5 | 2.5 | 2.5 | 89 | SEAMLESS |
| 4"X2" | 108.0 | 57.0 | 3.0 | 3.0 | 2.5 | 2.5 | 102 | SEAMLESS |
| 4"X2 1/2" | 108.0 | 76.1 | 3.0 | 3.0 | 2.5 | 2.5 | 102 | SEAMLESS |
| 4"X3" | 108.0 | 88.9 | 3.0 | 3.0 | 2.5 | 2.5 | 102 | SEAMLESS |
| 6"X2 1/2" | 159.0 | 76.1 | 3.0 | 3.5 | 2.5 | 2.5 | 140 | SEAMLESS |
| 6"X3" | 159.0 | 88.9 | 3.0 | 3.5 | 2.5 | 2.5 | 140 | SEAMLESS |
| 6"X4" | 159.0 | 108.0 | 3.0 | 3.5 | 3.0 | 3.0 | 140 | SEAMLESS |
| 8"X4" | 219.1 | 108.0 | 4.0 | 4.5 | 3.0 | 3.0 | 152 | SEAMLESS |
| 8"X6" | 219.1 | 159.0 | 4.0 | 4.5 | 3.0 | 3.5 | 152 | SEAMLESS |
| 10"X6" | 267.0 | 159.0 | 4.5 | 5.5 | 3.0 | 3.5 | 178 | SEAMLESS |
| 10"X8" | 267.0 | 219.1 | 4.5 | 5.5 | 4.0 | 4.5 | 178 | SEAMLESS |
| 12"X6" | 323.9 | 159.0 | 5.5 | 7.0 | 3.0 | 3.5 | 203 | SEAMLESS |
| 12"X8" | 323.9 | 219.1 | 5.5 | 7.0 | 4.0 | 4.5 | 203 | SEAMLESS |
| 12"X10" | 323.9 | 267.0 | 5.5 | 7.0 | 4.5 | 5.5 | 203 | SEAMLESS |
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
