| Product | Butt Welding Fittings |
|---|---|
| Category | ECC. Reducer |
| Name | [EEMUA 146 7060X] Butt Welding Type ECC. Reducer For Cu-Ni Pipe |
| Materials | EEMUA 146 7060X |
제품설명
- Unit : mm

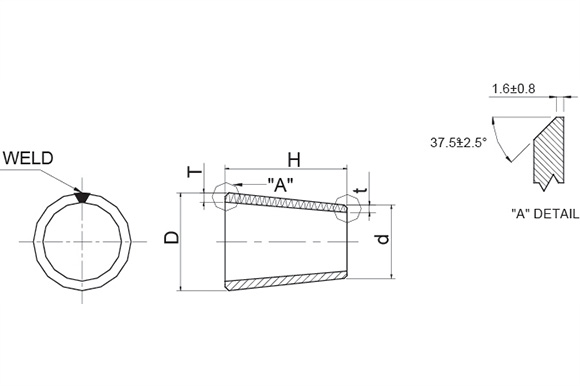

| Pipe | Dimension | Remark | ||||||
|---|---|---|---|---|---|---|---|---|
| N/D | D | d | T | t | H | |||
| 16Bar | 20Bar | 16Bar | 20Bar | |||||
| 14"X8" | 368.0 | 219.1 | 6.5 | 8.0 | 4.0 | 4.5 | 330 | WELDED |
| 14"X10" | 368.0 | 267.0 | 6.5 | 8.0 | 4.5 | 5.5 | 330 | WELDED |
| 14"X12" | 368.0 | 323.9 | 6.5 | 8.0 | 5.5 | 7.0 | 330 | WELDED |
| 16"X10" | 419.0 | 267.0 | 7.0 | 9.0 | 4.5 | 5.5 | 356 | WELDED |
| 16"X12" | 419.0 | 323.9 | 7.0 | 9.0 | 5.5 | 7.0 | 356 | WELDED |
| 16"X14" | 419.0 | 368.0 | 7.0 | 9.0 | 6.5 | 8.0 | 356 | WELDED |
| 18"X12" | 457.2 | 323.9 | 8.0 | 9.5 | 5.5 | 7.0 | 381 | WELDED |
| 18"X14" | 457.2 | 368.0 | 8.0 | 9.5 | 6.5 | 8.0 | 381 | WELDED |
| 18"X16" | 457.2 | 419.0 | 8.0 | 9.5 | 7.0 | 9.0 | 381 | WELDED |
| 20"X14" | 508.0 | 368.0 | 8.5 | 11.0 | 6.5 | 8.0 | 508 | WELDED |
| 20"X16" | 508.0 | 419.0 | 8.5 | 11.0 | 7.0 | 9.0 | 508 | WELDED |
| 20"X18" | 508.0 | 457.2 | 8.5 | 11.0 | 8.0 | 9.5 | 508 | WELDED |
| 24"X16" | 610.0 | 419.0 | 10.5 | 13.0 | 7.0 | 9.0 | 508 | WELDED |
| 24"X18" | 610.0 | 457.2 | 10.5 | 13.0 | 8.0 | 9.5 | 508 | WELDED |
| 24"X20" | 610.0 | 508.0 | 10.5 | 13.0 | 8.5 | 11.0 | 508 | WELDED |
| 28"X18" | 711.0 | 457.2 | 12.0 | 15.0 | 8.0 | 9.5 | 610 | WELDED |
| 28"X20" | 711.0 | 508.0 | 12.0 | 15.0 | 8.5 | 11.0 | 610 | WELDED |
| 28"X24" | 711.0 | 610.0 | 12.0 | 15.0 | 10.5 | 13.5 | 610 | WELDED |
*NOTE :
1. Dimension Per EEMUA 146
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
