| Product | Butt Welding Fittings |
|---|---|
| Category | ECC. Reducer |
| Name | [ASTM UNS C70600] Butt Welding Type Con Reducer For Cu-Ni Pipe |
| Materials | ASTM UNS C70600 |
제품설명
- Unit : mm

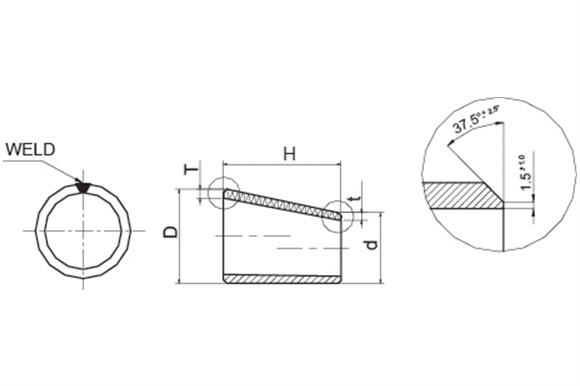

| Pipe | Dimension | Remark | ||||||
|---|---|---|---|---|---|---|---|---|
| N/D | D | d | T | t | H | |||
| S/10S | S/40S | S/10S | S/40S | |||||
| 14"X8" | 355.6 | 219.1 | 4.78 | 9.52 | 3.76 | 8.18 | 330 | WELDED |
| 14"X10" | 355.6 | 273.0 | 4.78 | 9.52 | 4.19 | 9.27 | 330 | WELDED |
| 14"X12" | 355.6 | 323.8 | 4.78 | 9.52 | 4.57 | 9.52 | 330 | WELDED |
| 16"X10" | 406.4 | 273.0 | 4.78 | 9.52 | 4.19 | 9.27 | 356 | WELDED |
| 16"X12" | 406.4 | 323.8 | 4.78 | 9.52 | 4.57 | 9.52 | 356 | WELDED |
| 16"X14" | 406.4 | 355.6 | 4.78 | 9.52 | 4.78 | 9.52 | 356 | WELDED |
| 18"X12" | 457.0 | 323.8 | 4.78 | 9.52 | 4.19 | 9.27 | 381 | WELDED |
| 18"X14" | 457.0 | 355.6 | 4.78 | 9.52 | 4.57 | 9.52 | 381 | WELDED |
| 18"X16" | 457.0 | 406.4 | 4.78 | 9.52 | 4.78 | 9.52 | 381 | WELDED |
| 20"X12" | 508.0 | 323.8 | 5.54 | 9.52 | 4.19 | 9.52 | 508 | WELDED |
| 20"X14" | 508.0 | 355.6 | 5.54 | 9.52 | 4.78 | 9.52 | 508 | WELDED |
| 20"X16" | 508.0 | 406.4 | 5.54 | 9.52 | 4.78 | 9.52 | 508 | WELDED |
| 20"X18" | 508.0 | 457.0 | 5.54 | 9.52 | 4.78 | 9.52 | 508 | WELDED |
| 24"X16" | 610.0 | 406.4 | 6.35 | 9.52 | 4.78 | 9.52 | 508 | WELDED |
| 24"X18" | 610.0 | 457.0 | 6.35 | 9.52 | 4.78 | 9.52 | 508 | WELDED |
| 24"X20" | 610.0 | 508.0 | 6.35 | 9.52 | 5.54 | 9.52 | 508 | WELDED |
| 28"X18" | 711.0 | 457.0 | 7.92 | 9.52 | 4.78 | 9.52 | 610 | WELDED |
| 28"X20" | 711.0 | 508.0 | 7.92 | 9.52 | 5.54 | 9.52 | 610 | WELDED |
| 28"X24" | 711.0 | 610.0 | 7.92 | 9.52 | 6.35 | 9.52 | 610 | WELDED |
*NOTE :
1. Dimension Per ASME B16.9
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
