[ASTM UNS C70600] 3000# Socket Welding Type Reducing Tee For Cu-Ni Pipe

페이지 정보

profile_image
작성자 Samyang
댓글 0건 조회 724회 작성일 20-08-29 23:17

본문

Product Socket Welding Fittings
Category RED. Tee
Name [ASTM UNS C70600] 3000# Socket Welding Type Reducing Tee For Cu-Ni Pipe
Materials ASTM UNS C70600

Product Information

  • Unit : mm

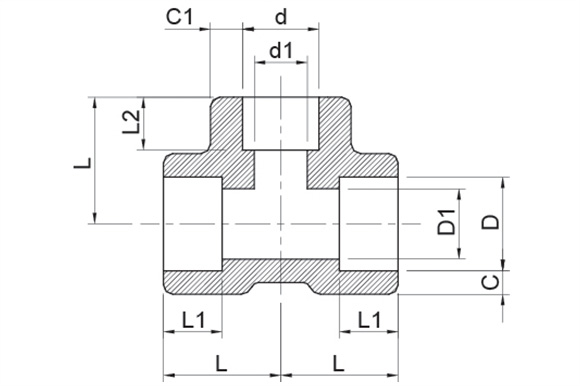

Pipe Dimension Remark
N/D D±0.2 D1 C d±0.2 d1 C1 L L1
(MIN.)
2
(MIN.)
AVG. MIN. AVG. MIN.
3/4"X1/2" 20.7 20.7 4.90 4.27 22.0 15.3 4.67 4.09 31.5 12.5 9.5
1"X1/2" 34.1 26.4 5.69 4.98 22.0 15.3 4.67 4.09 35.0 12.5 9.5
1"X3/4" 34.1 26.4 5.69 4.98 27.4 20.7 4.90 4.27 35.0 12.5 12.5
1 1/2"X1/2" 49.0 40.3 6.35 5.54 22.0 15.3 4.67 4.09 44.5 12.5 9.5
1 1/2"X3/4" 49.0 40.3 6.35 5.54 27.4 20.7 4.90 4.27 44.5 12.5 12.5
1 1/2"X1 49.0 40.3 6.35 5.54 34.1 26.4 5.69 4.98 44.5 12.5 12.5
*NOTE : 1. Dimension Per ASME B16.11
2. Process : Hot Forming
3. Heat Treatment : Annealing After Hot Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
