Product Composite Type Flanges
Category Welding Neck
Name [CW352H / A105 GAL'V As Per ASTM A153] ANSI 150LB & 300LB Composite Welding Neck Type Flange For Cu-Ni Pipe
Materials CW352H / A105 GAL'V As Per ASTM A153

Product Information

  • Unit : mm

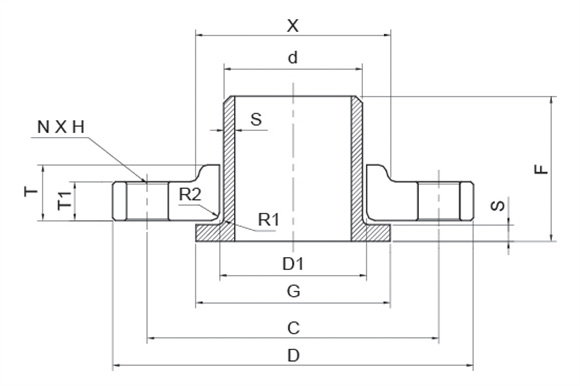

Pipe Internal Flange External Flange Bolt
N/D O/D d G S F G1 D C D1 T1 T X R2 N H
S10S S40S
1/2" 21.3 21.3 35 2.11 2.77 52 3 90 60.3 22.9 11.2 16 30 3 4 15.9
3/4" 26.7 26.7 43 2.11 2.87 51 3 100 69.9 28.2 12.7 16 38 3 4 15.9
1" 33.4 33.4 51 2.77 3.38 51 3 110 79.4 34.9 14.3 17 49 3 4 15.9
1 1/2" 48.3 48.3 73 2.77 3.68 51 6 125 98.4 50.0 17.5 22 65 6 4 15.9
2" 60.3 60.3 92 2.77 3.91 64 8 150 120.7 62.5 19.1 25 78 8 4 19.1
3" 88.9 88.9 127 3.05 5.49 64 10 190 152.4 91.4 23.9 30 108 10 4 19.1
4" 114.3 114.3 157 3.05 6.02 76 11 230 190.5 116.8 23.9 33 136 11 8 19.1
6" 168.3 168.3 216 3.40 7.11 89 13 280 241.3 171.4 25.4 40 192 13 8 22.3
8" 219.1 219.1 270 3.76 8.18 102 13 345 298.5 222.2 28.6 44 246 13 8 22.3
10" 273.0 273.0 324 4.19 9.27 127 13 405 362.0 277.4 30.2 49 305 13 12 25.4
12" 323.9 323.9 381 4.57 9.52 152 13 485 431.8 328.2 31.8 56 365 13 12 25.4
14" 355.6 355.6 413 4.78 9.52 152 13 535 476.3 360.2 35.0 79 400 13 12 28.6
16" 406.4 406.4 470 4.78 9.52 152 13 595 539.8 411.2 36.6 87 457 13 16 28.6
18" 457.0 457.0 533 4.78 9.52 152 13 653 577.9 462.3 39.7 97 505 13 16 31.8
20" 508.0 508.0 584 5.54 9.52 152 13 700 635.0 514.4 42.9 103 559 13 20 31.8
24" 610.0 610.0 692 6.35 9.52 152 13 815 749.3 616.0 47.7 111 663 13 20 35.0
  • Unit : mm
Pipe Internal Flange External Flange Bolt
N/D O/D d G S F G1 D C D1 T1 T X R2 N H
S10S S40S
1/2" 21.3 21.3 35 2.11 2.77 52 3 95 66.7 22.9 14.3 22 38 3 4 15.9
3/4" 26.7 26.7 43 2.11 2.87 51 3 115 82.6 28.2 15.9 25 48 3 4 19.1
1" 33.4 33.4 51 2.77 3.38 51 3 125 88.9 34.9 17.5 27 54 3 4 19.1
1 1/2" 48.3 48.3 73 2.77 3.68 51 6 155 114.3 50.0 20.7 30 70 6 4 22.3
2" 60.3 60.3 92 2.77 3.91 64 8 165 127.0 62.5 22.3 33 84 8 8 19.1
3" 88.9 88.9 127 3.05 5.49 64 10 210 168.3 91.4 28.6 43 117 10 8 22.3
4" 114.3 114.3 157 3.05 6.02 76 11 255 200.0 116.8 31.8 48 146 11 8 22.3
6" 168.3 168.3 216 3.40 7.11 89 13 320 269.9 171.4 36.6 52 206 13 12 22.3
8" 219.1 219.1 270 3.76 8.18 102 13 380 330.2 222.2 41.3 62 260 13 12 25.4
10" 273.0 273.0 324 4.19 9.27 127 13 445 387.4 277.4 47.7 95 321 13 16 28.6
12" 323.9 323.9 381 4.57 9.52 152 13 520 450.8 328.2 50.8 102 375 13 16 31.8
14" 355.6 355.6 413 4.78 9.52 152 13 585 514.4 360.25 54.0 111 425 13 20 31.8
16" 406.4 406.4 470 4.78 9.52 152 13 650 571.5 411.2 57.2 121 483 13 20 35.0
18" 457.0 457.0 533 4.78 9.52 152 13 710 628.6 462.3 60.4 130 533 13 24 35.0
20" 508.0 508.0 584 5.54 9.52 152 13 775 685.8 514.4 63.5 140 587 13 24 35.0
24" 610.0 610.0 692 6.35 9.52 152 13 915 812.8 616.0 69.9 152 702 13 24 41.3
*NOTE : 1. Dimension Per ASME B16.9(Internal) & ASME B16.5(External)
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
